Making Character Morphs in Daz Studio 3D

Today we are going to look at how to make Daz Studio 3D character morphs. In particular, body morphs. I will be working with Genesis 8 here, but you can apply most of this to Genesis 3 too.

Getting The Base Mesh

First up we need a base mesh to work on. I’ll put instructions for both Genesis 3 and 8 here even though we will be actually be working on Gen 8.

Genesis 3 Export

  1. Load Genesis 3 base model. This is the version named ‘Genesis 3 Male/Female’.
  2. Select Genesis 3.
  3. In ‘Parameters’ under ‘General’ change ‘Resolution Level’ to ‘Base’.
  4. Also change ‘SubDivision Level’ to 0 to be safe.
  5. Go to ‘File’ -> ‘Export’ and save as an OBJ.

Genesis 8 Export

  1. Load the Genesis 8 base model. This is the version named ‘Genesis 8 Male/Female’.
  2. Select Genesis 8.
  3. In your library under ‘Genesis 8 Female’ go to the ‘Developer Kit’.
  4. Run the ‘Export Base Resolution OBJ’ script and save as normal.

I have previously had issues with exporting Genesis 8 in the way used for Genesis 3 so I always advise this method if possible. You can get the Developer Kit for Genesis 8 free as part of the ‘Genesis 8 Starter Essentials’ from Daz.

You should know

Everything visible in the scene will be exported so disable visibility on anything else in the scene.

Importing The Base Mesh

I will be using Blender for this section. If you’ve never used a 3D modelling application before I would suggest Blender as a great free way to get started. Blender is an immensely powerful program but can be very daunting to use. With that I will not be going through every command or step in Blender so I recommend at least a minor working knowledge of Blender. A great start is Blender Guru’s awesome Doughnut based video tutorials.

If you are familiar with another application like 3DS Max, Cinema 4D or Maya then feel free to use what you know. Most instructions should be interchangable between programs.

First up, load your base mesh into your program. In Blender that is via the Import Wavefront OBJ option. During the import it is important to make sure ‘Keep Vert Order’ is selected. Everything else should be fine at their defaults.

Pressing the ‘period’ (decimal point) key on your number pad will focus Genesis in the Viewport, which is helpful after importing. If you see something like the image below, congratulations, you’ve successfully imported the Genesis base mesh into Blender.

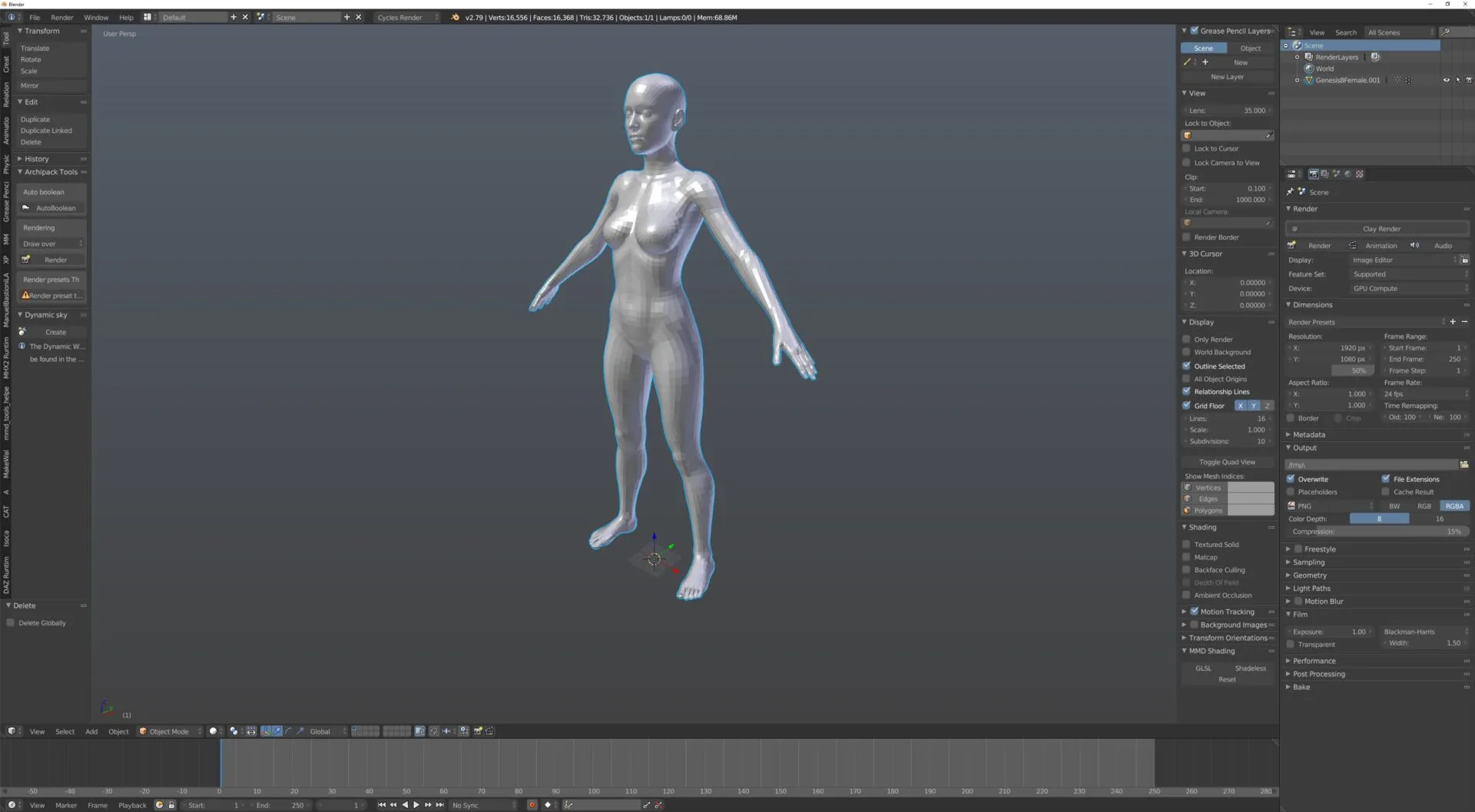

Genesis 8 base mesh as shown in Blender immediately after import.
Genesis 8 in Blender

Please be aware

Genesis will be gigantic in Blender due to the unit scale difference. If you find the grid useful you can increase the scale in the ‘Display’ options, those are found by pressing ‘n’ while over the 3D Viewport.

Creating The Morph

Now we can get onto creating the morph. I can’t really make a detailed guide for this section as it depends on the morph you wish to make, however I can give you some tips.

Subdivision Surface Modifier

The subdivision surface modifier is your friend. Before you even start to create your morph put a SubD modifier on your mesh. You will normally want to use 2 – 3 Subdivisions to match what Daz will render.

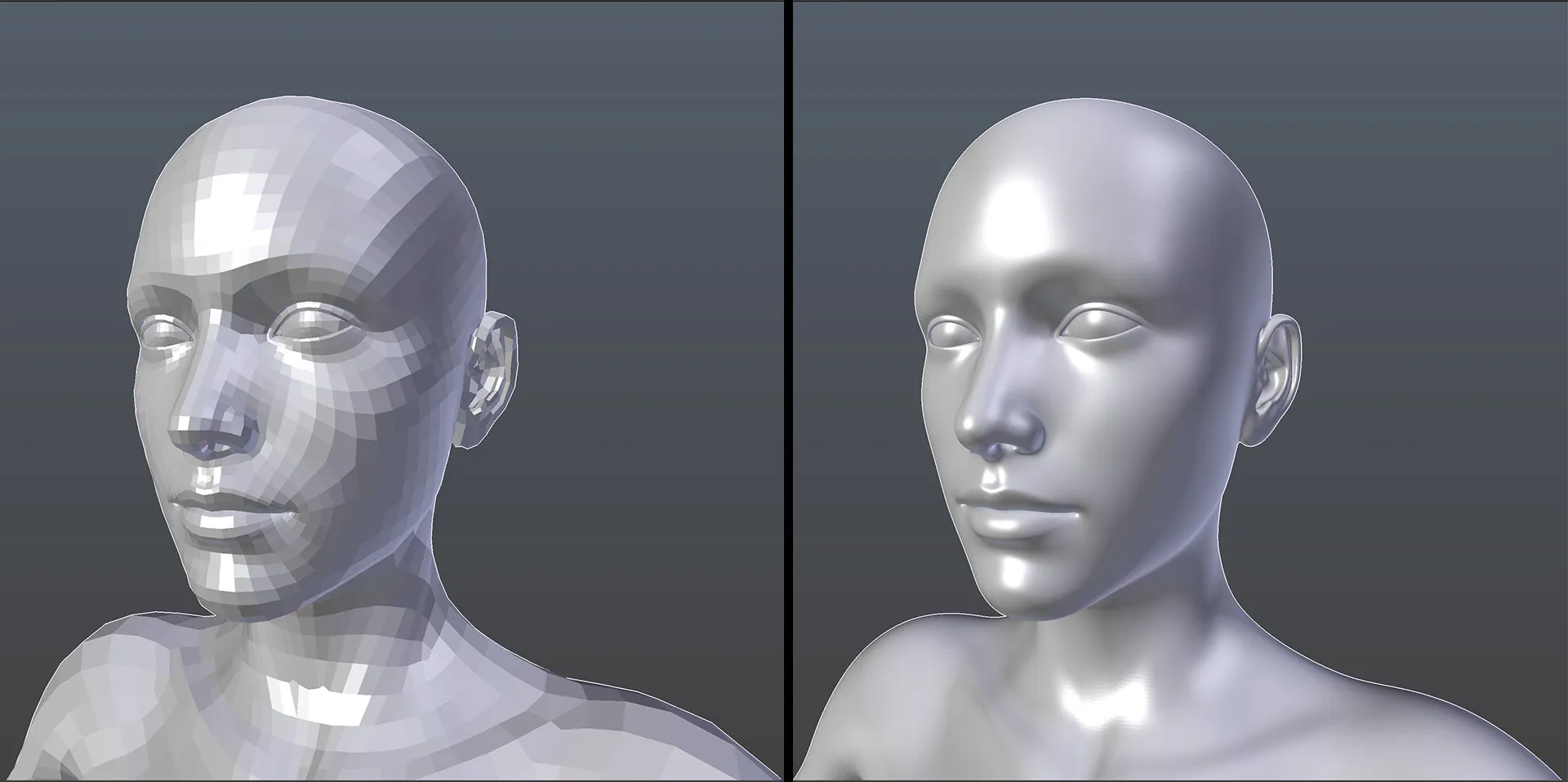

Base import without subdivisions on left. Base import with 3 subdivisions on right.
Base import (Left) | Subdivision Modifer at 3 Subdivisions (Right)

If you find things are running slow while editing your mesh, just drop the SubDivision levels down to a more manageable number and push it up when you want a preview.

Smooth Shading

Enable smooth shading using the ‘Smooth’ button under the toolshelf. You can open that by pressing ‘t’ while you are over the 3D Viewport. This will help make things look smoother which is helpful for organic modelling.

Proportional Editing

In Blender one of the best ways to make a morph is using ‘Edit Mode’ to move vertices around. However making edits while avoiding making lumps/creases can be problematic on complex meshes.

Proportional edit mode will move de-selected vertices in relation to the selected vertex using the pre-selected falloff method. This basically means that Blender will move the vertices inside your circle of influence to prevent undesirable lumps and bumps from appearing.

No Mesh Addition or Subtraction

When creating morphs you cannot add or subtract from the base mesh. Doing so will cause the morph to fail when you try to use it in Daz Studio. Using a Subdivision surface modifier is fine provided you use disable it before export or make sure to de-select ‘apply modifiers’ when exporting back to OBJ.

No Fine Details

A morph should be used to make modifications to the body shape rather than fine details. So if you want to give your character those ‘thicc’ thighs or stubby fingers, that’s great. It shouldn’t be used to try to add fine details such as veins or cracks/wrinkles in skin as the base mesh just isn’t detailed enough for that.

It should be noted that it is possible to add finer details via the mesh but Daz only gives access to the tool used for making HD morphs to their PA’s. Any discussion about that on their forum generally ends up with no progress and it being locked so I wouldn’t bother starting a thread if you were inspired to do so.

For us mere mortals that don’t have access to the HD morphs making tools you can instead sculpt in Blender or ZBrush and export a normal or displacement map. Those can then be used to apply a higher level of detail. I’m afraid how to do that is outside the scope of this article though.

Exporting Modified Mesh

Once you have made your modifications you can now export your mesh. In my case I have made a morph for Genesis 8 Female’s feet as I hate how ‘sausage’ like the default toe shape is. Here is what mine looks like with a SubDivision modifier at level 3.

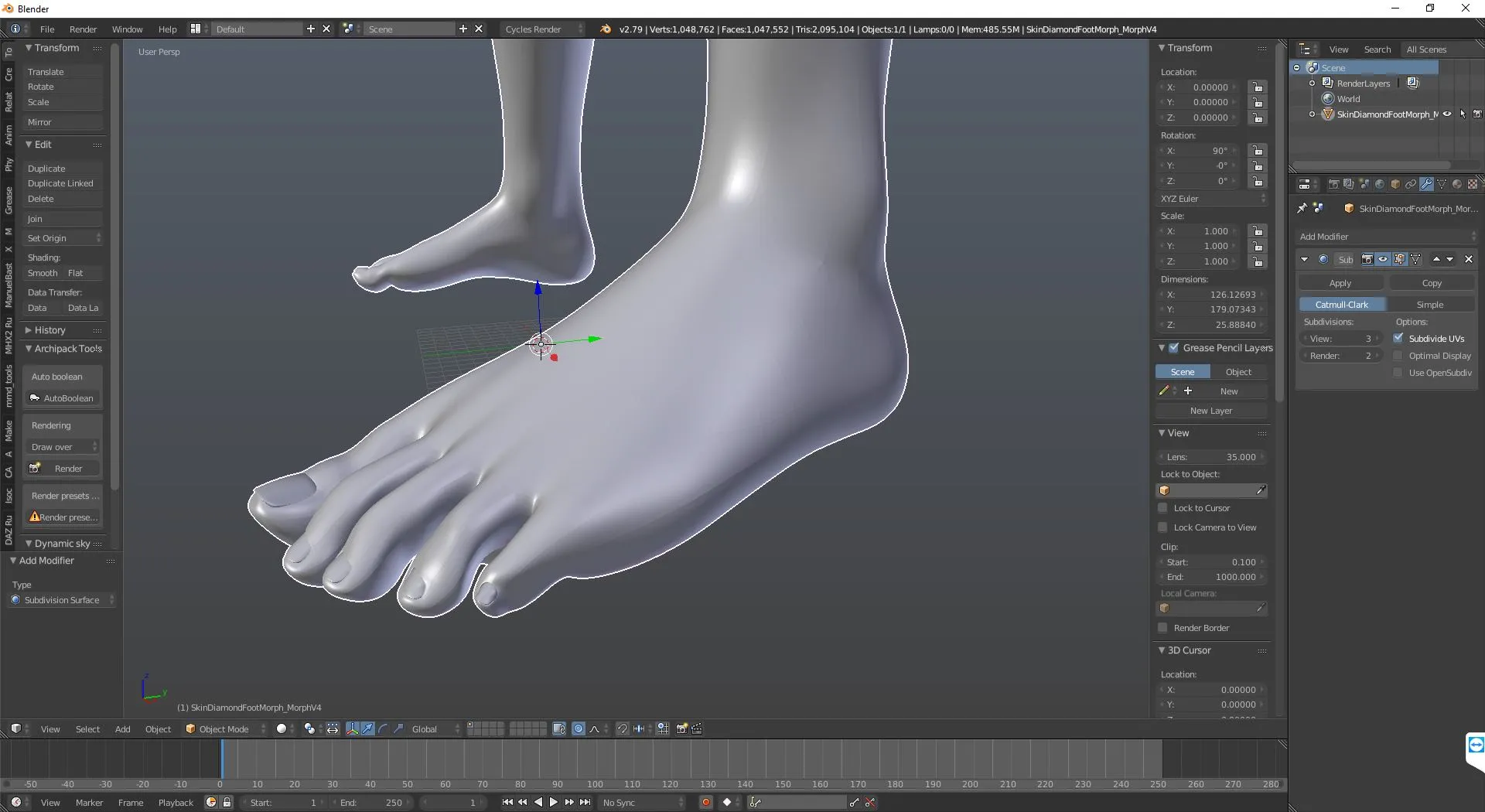

Completed Genesis 8 Foot Morph in Blender 3D Viewport
Completed Genesis 8 Foot Morph

To export all you need to do is make sure the mesh is selected and go to ‘File’ -> ‘Export’ and select Wavefront OBJ. When exporting make sure to set select ‘Selection Only’ and ‘Keep Vertex Order’. Disable ‘Apply Modifiers’ if you have Subdivision or any other modifiers that will effect vertex count enabled.

Using The Morph

Back in Daz we are now ready to use the morph. To do that select Genesis 8 (or 3 if you are using G3) and go to ‘Edit’ -> ‘Figure’ -> ‘Morph Loader Pro’.

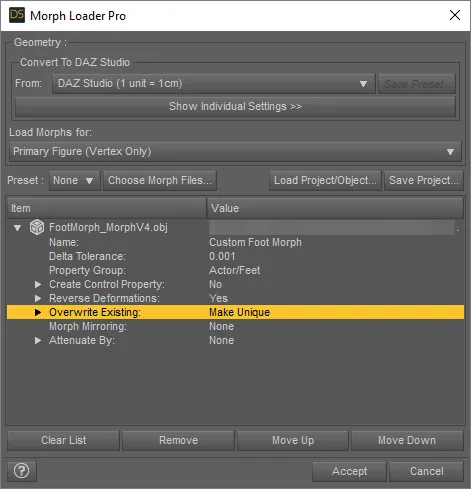

Foot Morph - Morph Loader Pro Settings
Foot Morph – Morph Loader Pro Settings

These are the settings I used for my Foot morph. You should select a name that suits your morph and select a property group that makes sense for the particular morph. You can even create your own property group if you wish.

Hit ‘Accept’ and your morph will be loaded onto the model. Just find it in the property group you set and push up the slider to enable it.

If you get a message that the morph failed to load due to the Geometry not matching then you will need to make sure you didn’t accidentally add or remove geometry, or leave a modifier enabled with ‘Apply Modifiers’ selected on export. Also check that your base mesh was created using the instructions shown at the start of this tutorial. Those are the most common reasons for the morph failing to apply.

Mighty Morphing Complete!

That’s it, you have successfully created a morph. If you want to save the morph to your character you can by dialing the morph to 0, so that it isn’t active when the character loads, and using ‘File’ -> ‘Save As’ -> ‘Support Asset’ -> ‘Morph Asset(s)’.

In the box that appears enter a Vendor and Product Name and use the twirler to find your morph and tick it. DO NOT tick only the main Genesis figure or it will save ALL morphs. You might also want to select a different Daz 3D Library path to keep your created morphs separate from your main library.

Free Genesis 8 Foot / Toe Morph

If you made it to the end, congratulations! This tutorial ended up way longer than I’d have liked it to, but as a reward I’m offering the toe morph I made for free via my Deviant Art account.

To install just merge the folder with your own ‘data’ folder in your Daz 3D library and it will be available under ‘Actor/Feet/Morphs’ when you load up any Genesis 8 based figure.

Genesis8ToesMorphComparison

Genesis 8 Base No Morph (Left) | Genesis 8 Base Toe Morph (Right)

The difference is very subtle, but I much prefer the morphed version as the toes have a little more character. I will also be improving on it and will update the link as I do.

One note is that this morph was created for Genesis 8 Base. It will work with all models based on Genesis 8, but you may need to make a corrective morph or dial it down a little on some due to the difference in toe/foot shape on specific models.

As an example, one of my favorite Genesis 8 Models Shuang will require a corrective morph on her little toe if I want to use the toe morph on her. You can see how it looks without a corrective morph below.

ShuangFootMorph

The steps for creating a corrective morph are for another tutorial.

If you have any questions or comments feel free to ask me on my Deviant Art account or using the comments below.
